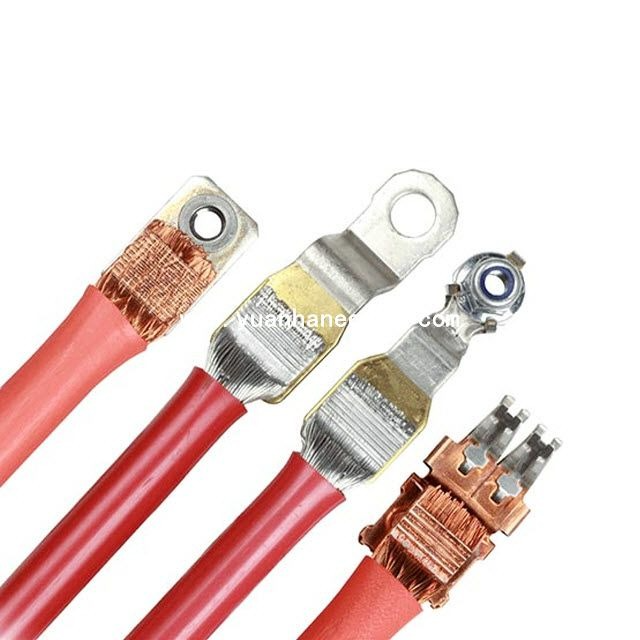

The ultrasonic wire terminal welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on. Applicable wire size: 35-50 mm2.
○ Touch screen English interface
○ Wire material: pure red copper
○ Terminal material: pure red copper
○ Wire size: 35-50 mm2
| Modelo | YH-DD2055 |
| Working frequency | 20K |
| Potência | 5500W |
| Voltage | 380V |
| External air pressure | 0.8Mpa |
| Ultrasonic control box size | 550x450x180mm |
| Main body head size | 570x280x320mm |
| Peso | 70-75kg |
| Wire material | pure red copper |
| Terminal material | pure red copper |
| Wire size | 35-50 mm2 |
| Wire breakage/leakage after welding | none |
| Height tolerance after welding | 0.1-0.3mm |
| Width tolerance after welding | 0.1-0.3mm |
| Welding speed | 2s |
