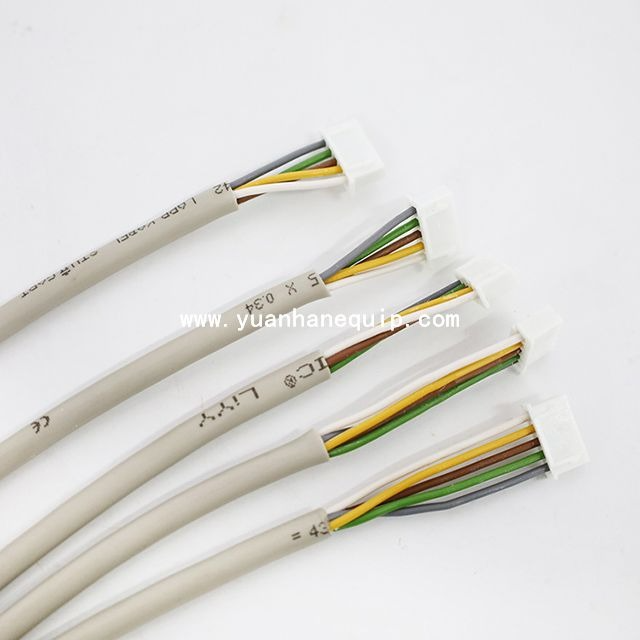

This is a semi-automatic connector housing assembly machine for multi-conductor cables. It is able to process multi-core cable stripping, terminal crimping and connector housing inserting in one pass.
○ Simple and intuitive touch screen
○ Function: multi-core cable stripping, terminal crimping and connector housing inserting
○ Support installing CCD visual inspection system to detect defective products
○ Adopt closed-loop stepping and servo motor drive, lead screw drive to improve accuracy, to ensure high quality products
| النموذج | YH-SHCJK |
| حجم السلك | ¢0.6mm-¢2.5mm |
| Wire type | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, etc. |
| Number of core wires | ≤12 cores |
| Outer jacket stripping length | 2-5 cores ≥ 34mm, 6-12cores ≥40mm |
| Core wires stripping length | 0.5-10mm, stripping deviation: 0.05-0.1mm |
| Terminal type | open horizontal feed continuous terminal |
| Crimping force | 1.5T |
| الطاقة | 2000W, 200V-240V 50/60Hz |
| Gas source | 0.5-0.6MPa |
| الأبعاد | L1265xW1200xH1750mm |
| الوزن | 300KG |
