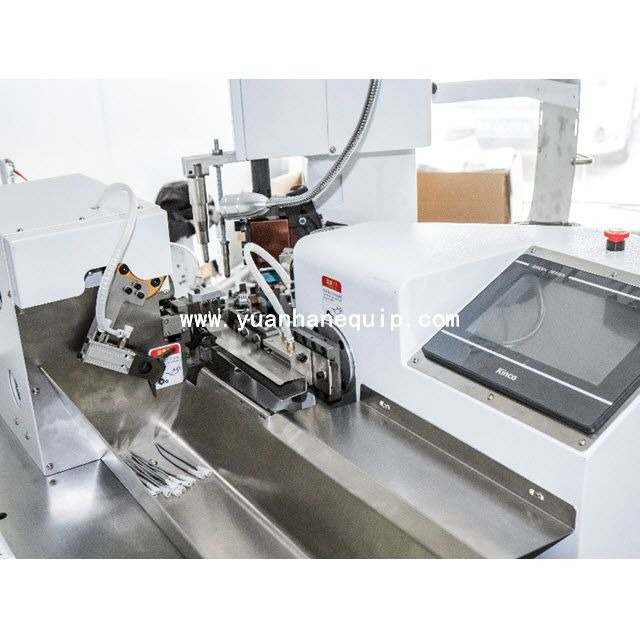

This is a fully automatic wire processing machine. It can process cable cutting, stripping, single-ended insulating sleeve insertion, single-ended crimping, single-ended twisting and tinning in one go.
○ Function: cable cutting, stripping, single end insulating sleeve insertion, single end crimping, single end twisting and tinning.
| Model | YH-ZXH01 |
| Stripping range | 0-15mm |
| Wire cutting tolerance | ±0.2% |
| Processing length | 50-9900mm |
| Processing efficiency | 1500pcs/h, within 300mm |
| Crimping force | 2-3T |
| Wire size | AWG16-26# 1007 single wire |
| Applicator | OTP horizontal applicator, vertical applicator |
| Wire sleeves | 187, 250, 110 and other straight tubular sleeves |
| Power | AC 220V 2.5KW |
| Air | 0.5-0.7MPa |
| Dimensions | 750mm*950mm*1600mm (excluding accessories) |
| Weight | 280KG |
